GT-27 Black
Available for Seat &Backrest
ST-01 Black
Backrest Only
HM-38 Black
Seat Only
HM-17 Red
Seat Only
HM-34 Dark Grey
Seat Only
HM2-11 Grey
Seat Only
HM2-14 Light Green
Seat Only
HM2-15 Orange
Seat Only
Product Features
Two sections of chair back offer a full range of back support

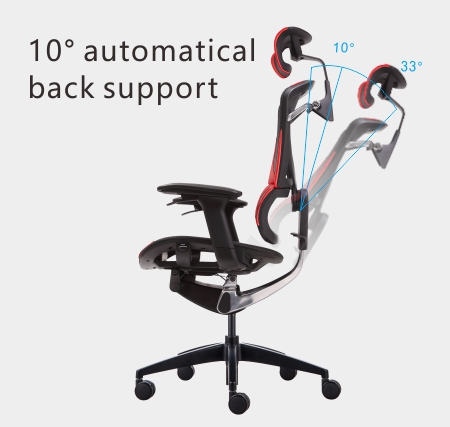

BAS system(Back Automatic Supporting System)

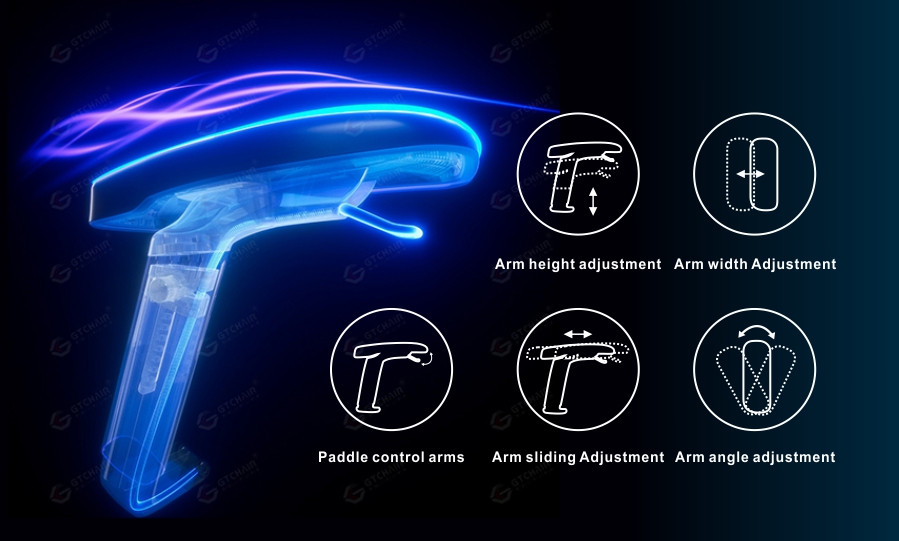

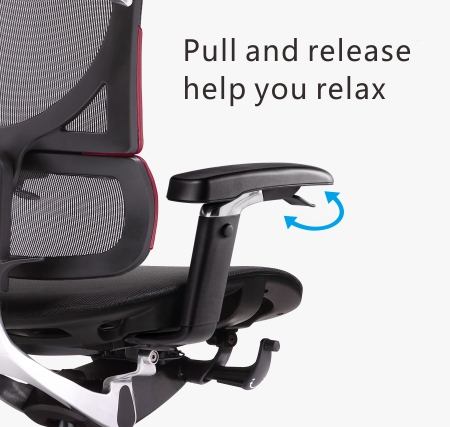

Excellent paddle shift control armrest
Function Introduction

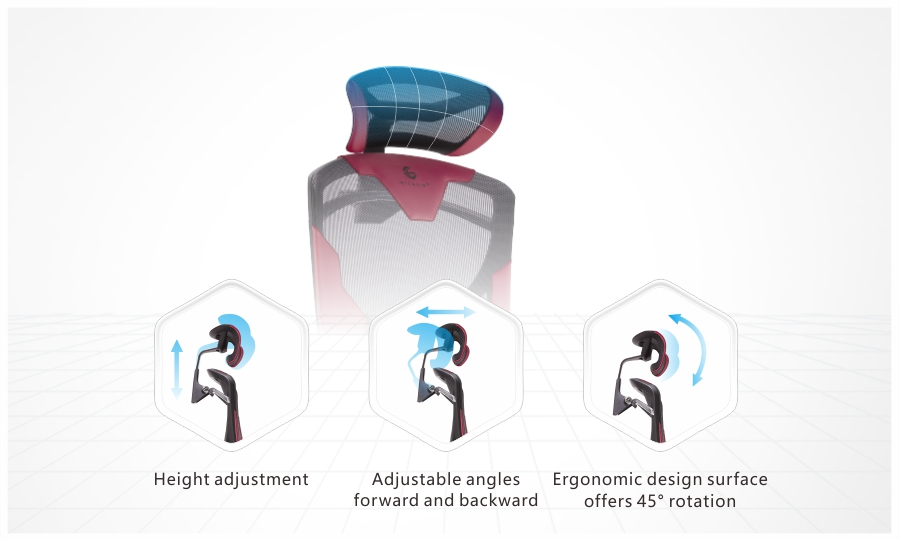

Headrest Adjustment

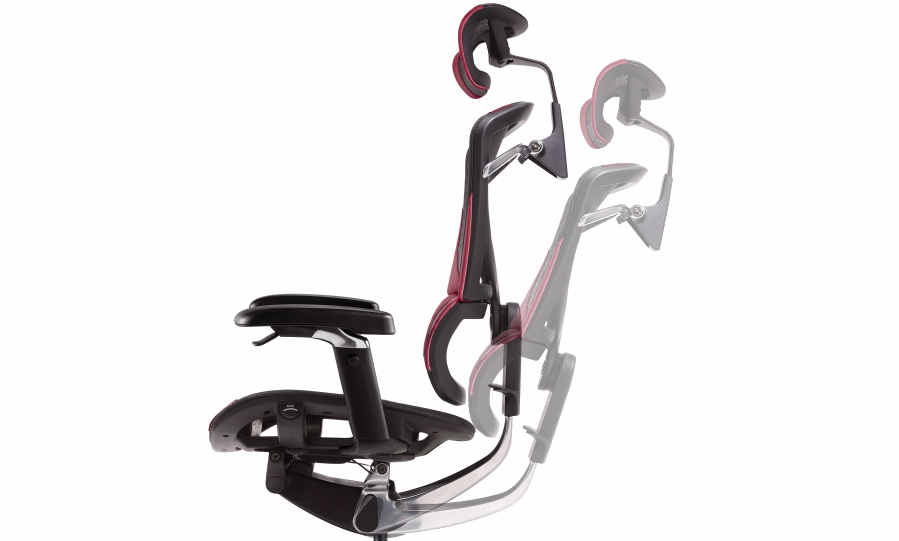

Backrest Tilt Adjustment

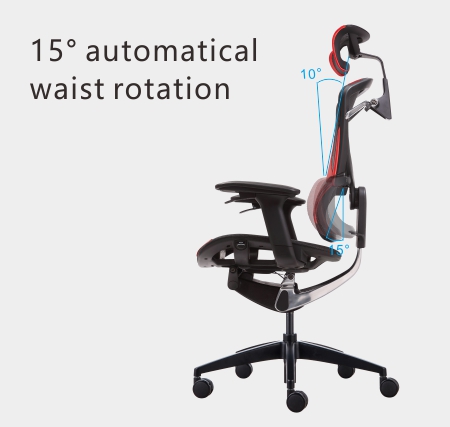

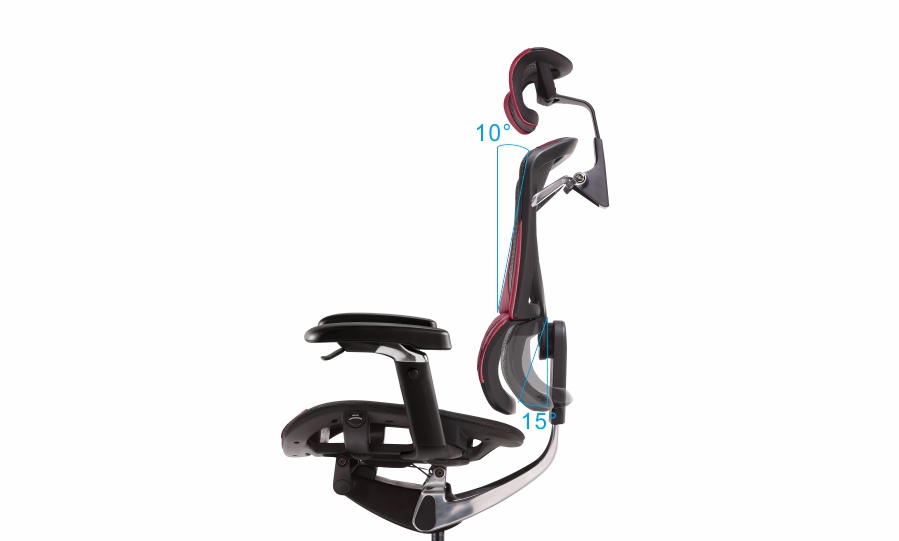

Lumbar Support Adjustment
Armrest Adjustment

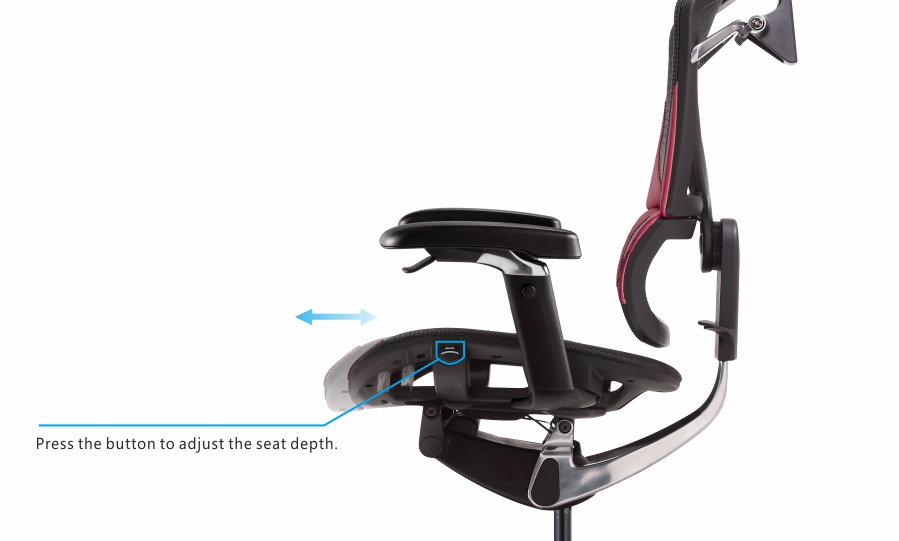

Seat Adjustment
Tilt Tension Adjustment
Headrest Adjustment Headrest height adjustment: 5cm 5 levels adjustment; headrest angle adjustment: 36° rotation adjustment; headrest surface rotation adjustment: headrest surface 45° rotation adjustment Backrest Tilt Adjustment The backrest frame is made by ADC12# polished aluminum alloy, which can be adjusted in 4 different levels, and it can fit and help relax for different height of users. The backrest tilt angle can be adjusted and locked within 33° in 15 different positions by the paddle shift on the arm. Lumbar Support Adjustment The backrest is equipped own-designed Back Automatic Supporting System which consists several dependent supporting parts, which can adjust the gesture to fit user's back within 10 degree. 5D Paddle Control Arms Arm height adjustment; Arm width Adjustment; Arm sliding Adjustment; Arm angle adjustment; Paddle control arms Seat Adjustment Seat depth adjustment: press the button, and slide the seat to adjust the seat depth Seat height adjustment: the height of the seat can be adjusted by the paddle shift on the armrest. Backrest Tilt Tension Adjustment The knob under the right side of the seat can adjust the backrest tilt tension to fit 40-50kg users comfortable tilt tension.
